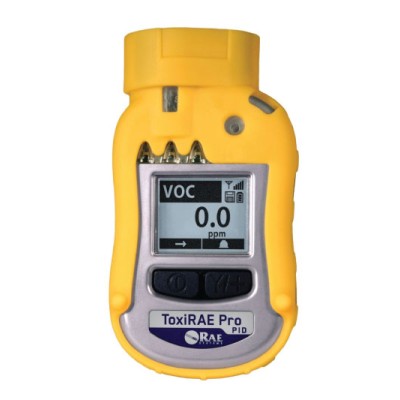

ToxiRAE Pro Single Gas Detector
Gas Quantity: 1 Gas
O2 Sensor Life: 2-year
Typical Battery Life: 30 hours [typical, non wirless]; recharges in less than 4 hours
Warranty: 2-year warranty on non-consumable components and CO, H2S, and O2 sensors, 1-year warranty on all other sensors, battery, and other consumable parts
Price:
$957.00
Ex Tax:
$870.00
The ToxiRAE Pro can detect a broad range of gases, it has a Man Down Alarm with real-time remote wireless notification.
Stock Status - Special Order on the supplier.
PORTABLE / WIRELESS / RELIABLE
O2 | CO | H2S | NH3 | CO2 | CI2 | CIO2 | ETO | HCHO | H2 | HCN | CH3-SH | NO | NO2 | PH3 | SO2 | LEL | PID
- Wireless gas detector elevates safety to the next level
- Over 20 intelligent interchangeable sensor options to cover a wide variety of gases
- Man Down Alarm with real-time remote wireless notification
- Easy to maintain with a replaceable sensor, filter, and Li-ion battery
- Fully-automatic bump testing and calibration with AutoRAE 22.
ToxiRAE Pro Benefits at a Glance
- Easy to maintain and calibrate
- Anytime, anywhere access to real-time instrument reading and alarm status with ProRAE Guardian Software or EchoView Portable Controller
- Five-way alarm notification — man down, and 4 instrument alarms
- Rugged, IP-54 (PID) and IP-65 (EC, LEL, and CO2) protection rating
- Compact and lightweight
- 3 months of continuous data logging
- Field-replaceable battery, filter, sensor, and PID fan
- Fully automated calibration with AutoRAE2
MicroRAE Specifications
| Size | 118 x 60 x 30 mm |
| Weight | 220 g |
| Battery |
Rechargeable Li-ion
- Operating time: > 30 hours (normal operation, non-wireless)
- Recharge time: < 4 hours through charging cradle
|
| Display Graphic | Graphical LCD display with white LED backlighting (activated when the monitor is in alarm or with a button press) |
| Keypad | 2 buttons for operation and programming |
|
Display Readout
|
|
|
Sampling
|
Diffusion
PID - Internal Fan
|
| Calibration | Automatic with AutoRAE 2 Test and Calibration System3 or manual |
| Alarms |
|
| Datalogging |
Continuous data logging with a three-month capacity (at one-minute intervals)
|
| Communication & Data Download |
|
| Wireless Network | ProRAE Guardian Real-Time Wireless Safety System or Closed-Loop Network with the EchoView Host |
| Wireless Range (Typical) |
ToxiRAE Pro to Mesh Router, EchoView Host, or Mesh Reader2 ~ 660 feet (200 meters)
ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh modems ~ 330 feet (100 meters)
|
| EMC/RFI | EMC directive: 2004/108/EC |
| IP Rating |
IP-65 rating for dust and water ingress protection
(validated by an independent test laboratory
|
| Calibration | Two-point calibration (manual or automatic with AutoRAE 2) |
| Safety Certifications |
CSA: SA Class I, Division 1, Groups A, B, C and D. T-code T4 Class I, Zone 0 A/Exia IIC T4
ATEX: , II 1G, Ex ia IIC Ga T4
IECEx: Ex ia IIC Ga T4
China Ex: Ex ia IIC T4
|
| Operating Temperature | -20° to 55°C |
| Humidity | 0% to 95% relative humidity (non-condensing) |
| Warranty |
|
| Wireless Frequency | ISM license-free band. IEEE 802.15.4 Sub 1 GHz |
| Wireless Approvals | FCC Part 15, CE R&TTE, Others4 |
| Radio Module | Supports RM900 |
Sensor Specifications
| Oxygen (O2) |
Range: 0 to 30% 0.1%
Resolution: 0.1% Vol
|
| Carbon Monoxide (CO) |
Range: 0 to 500 ppm
Resolution: 1 ppm
|
| Carbon Monoxide (CO) Ext. Range |
Range: 0 to 2,000 ppm
Resolution: 10 ppm
|
| Carbon Monoxide (CO) H2 -Comp |
Range: 0 to 2,000 ppm
Resolution: 10 ppm
|
| Chlorine (CI2) |
Range: 0 to 50 ppm
Resolution: 0.1 ppm
|
| Chlorine Dioxide (ClO2) |
Range: 0 to 1 ppm
Resolution: 0.03 ppm
|
| Ethylene Oxide (ETO-A) |
Range: 0 to 100 ppm
Resolution: 1 ppm
|
| Ethylene Oxide (ETO-B) |
Range: 0 to 10 ppm
Resolution: 0.1 ppm
|
| Ethylene Oxide (ETO-C) Ext.Range |
Range: 0 to 500 ppm
Resolution: 10 ppm
|
| Formaldehyde (HCHO) |
Range: 0 to 10 ppm
Resolution: 0.05 ppm
|
| Hydrogen (H2) |
Range: 0 to 1,000 ppm
Resolution: 10 ppm
|
| Hydrogen Cyanide (HCN) |
Range: 0 to 50 ppm
Resolution: 0.5 ppm
|
| Hydrogen Sulfide (H2S) |
Range: 0 to 100 ppm
Resolution: 0.1 ppm
|
| Hydrogen Sulfide (H2S) Ext. Range |
Range: 0 to 1,000 ppm
Resolution: 1 ppm
|
| Methyl Mercaptan (CH3-SH) |
Range: 0 to 10 ppm
Resolution: 0.1 ppm
|
| Nitric Oxide (NO) |
Range: 0 to 250 ppm
Resolution: 0.5 ppm
|
| Nitrogen Dioxide (NO2) |
Range: 0 to 20 ppm
Resolution: 0.1 ppm
|
| Phosphine (PH3) |
Range: 0 to 20 ppm
Resolution: 0.1 ppm
|
| Sulfur Dioxide (SO2) |
Range: 0 to 20 ppm
Resolution: 0.1 ppm
|
|
LEL (Catalytic Bead)
Response Time (T90) <15 seconds
|
Range: 0 to 100% LEL
Resolution: 1%
|
|
CO2
Nondispersive infrared sensor
|
Range: 0 to 50,000 ppm
Resolution: 100 ppm
|
| PID |
Photoionization sensor with 10.6 eV (standard) or 9.8 eV2,3 (optional) lamp.
Response time (T90) < 15 sec. (Isobutene).
Field-replaceable sensor.
Easy access lamp for cleaning
|
1 Wireless units have a functioning RF modem and are ready for wireless deployments; non-wireless units cannot be upgraded to wireless. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
2 Contact Gas Detector Shopfor availability.
3 Honeywell RAE Systems recommends calibrating sensors on installation.
4 Contact Gas Detector Shop for country-specific wireless approvals and certificates. Specifications are subject to change.
The ToxiRAE Pro is suited to the following applications:
- CBRNE
- Clandestine Labs
- Emergency Response
- Environmental Cleanups/ Remediation
- Exploration
- Fire Overhaul
- Fracking
- Hazmat Response
- Leak Detection
- Plant Shutdown & Turn-Around
- Residential Calls
- Urban Search & Rescue
- Worker Exposure
ToxiRAE Pro Special Order
When you see 'Special Order' products available for purchase on our website it means they will be sourced on-demand from our suppliers when you place your order. Products typically have this status when the product is not actively stocked within our warehouse but is available to order.
This may be due to the shelf life or the specialty nature of some of our products (ie: gas detection and specialty gases) or the need to custom manufacture a product to fit/suit the application.
Once we have received your order and payment confirmation we will place an order with the Supplier.
Gas Detectors / Specialty gases (ie: short shelf-life products) - may take up to 4 weeks (please note this can vary per supplier availability and manufacturing schedules) to be receipted into our store. You will receive an estimated date of shipping once we have received confirmation from our Supplier.
Custom Manufacturing - for items that require custom manufacturing you will receive an estimated date of shipping once we have received confirmation from our Supplier.
From time to time a supplier may not be able to supply in the time indicated, and items are placed on backorder. If it appears that your order will not be dispatched on time, you will be informed as soon as possible. You will be offered the opportunity to cancel your order at that time, otherwise, your order will be dispatched as soon as the items are available.
