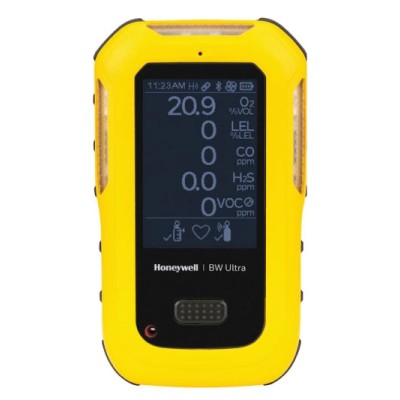

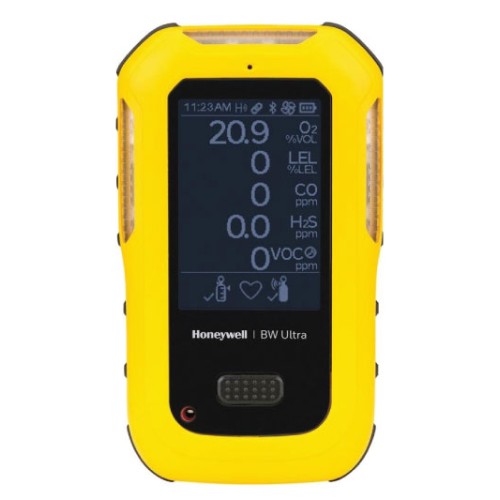

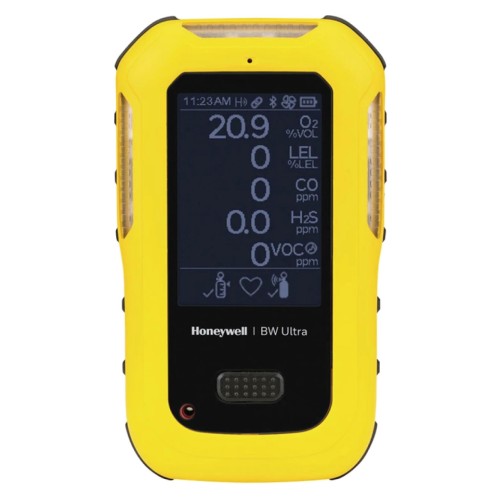

Honeywell BW Ultra Portable Gas Detector - detect up to 5 gases
Gas Quantity: 5 Gases
O2 Sensor Life: 3 years
Typical Battery Life: 18 hours [typical]; (14 hours with PID or IR sensor) at -20°c
Warranty: Full 3-year warranty
Price:
$3,531.00
Ex Tax:
$3,210.00
The Honeywell BW™ Ultra has been designed specifically for the sampling and monitoring of dangerous gases in confined spaces, before and after entry, Honeywell BW™ Ultra offers enhanced 1-Series sensor technology, visibility on gas readings, comfort, and connectivity. This makes it more reliable and provides an intuitive user experience, helping to prevent a potential gas safety incident.
Stock Status - Special Order on the supplier
The Honeywell BW Ultra portable gas detector will fit the shape of your hand – with a comfortable weight and a slimmer profile than the other five gas detectors – to minimise fatigue and offer enhanced productivity.
The one-button operation you’ve come to expect from Honeywell gas detectors. An internal pump and no snag points mean if you need to wear the Honeywell BW™ Ultra in tight spaces the detector will move with you.
Honeywell BW™ Ultra fully complies with all safety regulations in place by detecting the five gases for added protection at work.
Suitable applications for this Honeywell 5 sensor gas detector include oil & gas, pulp & paper, water treatment, shipping industry, chemical plants, or other industries for confined space entries.
PORTABLE / EASY TO USE / RELIABLE
CO | H2S | O2 | LEL | VOC | CO2 | SO2 | NH3 | H2 | CL2 | NO2 | HCN | NO
- Small size with large easy to view screen
- Easy to use
- New 1-Series sensor for enhanced reliability
- Rugged and reliable
- Honeywell Connected Worker compatible
- Affordable protection
- IP Rating IP66/68
- 3-year warranty*
Benefits at a glance
Ultra Easy
- Tamper-proof operation with one-button operation
- Intuitive LCD icons for quick decision making
- Easy service and maintenance
Ultra Visibility
- Intuitive large dot matrix display giving clear readings
- Smart Gas layout for clear sensor reading
- Hole Watch Mode for quick decision making
- IntelliFlash™ and also Reverse IntelliFlash™ for clear compliance
Ultra Rugged
- Honeycomb-designed housing for extra ruggedness
- Protection designed in the right place
- Scratch-resistant display protector
Ultra Connected
- Honeywell Connected Worker compatible
- Honeywell TouchConnect™ Technology for activating a feature
- Honeywell SafetySuite for unit configuration and reporting
Ultra Comfortable
- Ergonomically designed for easy use
- Light yet rugged design
- Fits in the hand for easy sampling
Ultra Quick
- Quick responding sensor technology
- Quick decision-making because the large display
- Quick bump & calibration with the IntelliDoX system
BW Ultra Specifications
| Size |
14.8 x 8.5 x 4.0cm
|
| Weight |
411 gram with clip
|
| Temperature |
-20 to +50°c
|
| Humidity |
0% - 95% RH [non-condensing]
|
| Ingress Protection | IP66/68 |
| Alarms & Type |
visual, vibrating, audible [95dB], Low, High, STEL, TWA, OL [over limit]
|
| Self Test | Activated detectors automatically perform one internal diagnostic test every 24 hours (sensors, battery & circuitry) |
| Pump | Sampe from up to 22.9m |
| Typical Battery Life* | 18 hours [typical]; (14 hours with PID or IR sensor) at -20°c |
| Connected Worker |
BluetoothTM Low Energy (BLE) - ability to connect to Honeywell's Safety Communicator App
Honeywell's TouchConnectTM - Easy ability to enter Bump or Calibration mode or change Set-Points
|
| Event Logging | 30 alarm events and 10 bump events |
| Data Logging | 45 days based on 8 hour shifts every 15 seconds logging |
| User Options |
Adjust STEL period (5-15 minutes in 1 minute intervals)
Calibration Span levels
Calibration intervals
Bump test interval
Select combustible gas measurement: 0-100% LEL (lower explosive limit) or Methane gas 0-5.0% v/v
LEL and PID correction factors
Calibration due date (1 to 365 days, or set to sero for off)
Individual sensor enable /disable
Latching alarms
Stealth mode
Languages: English, French, German, Portuguese, Spanish, Simplified Chinese and Russian
|
| Certificates & Approvals |
Class 1, Div 1, Gr A, B, C, D
Atex: II 1G Ex ia IIC T4 Ga
IECEx: Ex ia IIC T4 Ga
CE: European Conformity
|
| Warranty |
Instrument: 3 years
Sensors: 3 years (2 years NH3, 1 year PID and Cl2)
Battery: 2 years
|
Sensor Specifications
| Oxygen (O2) |
0 - 25% Vol
|
0.1% vol |
| Combustible Gases (LEL) | 0 - 100% LEL | 1% LEL |
| Combustible Gases (IR)* | 1 - 5.00% vol | 0.01% vol |
| Hydrogen Sulfide (H2S) | 0 - 100 ppm | 1 ppm / 0.1 ppm |
| Carbon Monoxide (C0) | 0 - 2,000 ppm | 1 ppm |
| Carbon Monoxide (Low H2) (C0-H) | 0 - 1,000 ppm | 1 ppm |
| Sulfur Dioxide (S02) | 0 - 100 ppm | 0.1 ppm |
| Hydrogen (H2) | 0 - 2,000 ppm | 5 ppm |
| Carbon Dioxide (C02) | 0 - 50,000 ppm | 100 ppm |
| Ammonia (NH3) | 0 - 100 ppm | 1 ppm |
| Volatile Organic Compounds (VOC)** | 0 - 1,000 ppm | 1 ppm |
| Chlorine (CL2) | 0 - 20 ppm | 0.1 ppm |
| Nitrogen Dioxide (N02) | 0 - 50 ppm | 0.1 ppm |
| Hydrogen Cyanide (HCN) | 0 - 100 ppm | 0.1 ppm |
| Nitrogen Monoxide (N0) | 0 - 200 ppm | 1 ppm |
Download the Honeywell BW Ultra data sheet.
