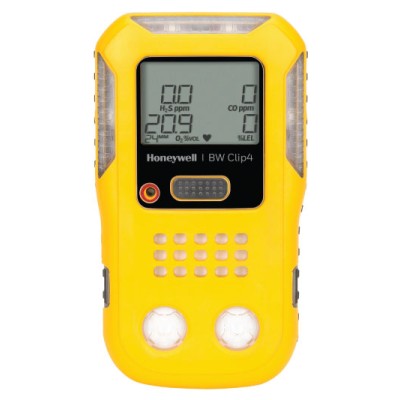

Honeywell BW Clip 4 Multi Sensor Portable Gas Detector
Gas Quantity: 4 Gases
Typical Battery Life: 2 years continuous runtime
Warranty: 2-year warranty including sensors
Price:
$1,574.10
Ex Tax:
$1,431.00
The BW Clip4 from Honeywell is the latest in hassle-free wearable 4-gas detection. This easy-to-use multi-gas detector is always on, requiring no charging or battery replacement. Once the Clip4 has been activated the detector is always on.
Stock Status - Special Order on Supplier
PORTABLE / EASY TO USE / RELIABLE
CO | H2S | O2 | LEL
- 2-year continuous runtime, it's always on
- Simple one-button operation
- No charging or sensor/battery replacements
- IntelliDoX compatible
BW Clip4 Specifications
| Size |
11.9 x 6.8 x 3.2cm
|
| Weight |
233g
|
| Temperature |
-20°c to +50°c
|
| Humidity |
5% - 95% RH [non-condensing]
|
| Alarms |
- visual, vibrating, audible [95dB]
- Low, High, STEL, TWA, OL [over limit]
|
| Self Test | Activated detectors automatically perform internal diagnostic tests every 24 hours on sensors, battery, and circuitry |
| Typical Battery Life* | Two years of continuous operation |
| Event Logging | 70 most recent events |
| User Options |
Adjust STEL period (5-15 minutes in 1-minute intervals)
Calibration span levels
Calibration interval
Bump test interval
Select combustible gases measurement: 0 - 100% LEL (Lower Explosive Limit) or Methane gas 0 - 5.0% v/v
Calibration due date (1 to 365 days, or set to zero for off)
Individual sensor enable /disable
Latching alarms
Stealth Mode
|
| Ingress Protection | IP68 |
| Certificates & Approvals |
Class 1, Div 1, Gr A, B, C, D
Class 1, Zone 0, Group IIC
Atex: CE 0539 II 1G
Ex ia IIC T4 Ga
IECEx: Ex ia IIC T4 Ga
CE: European Conformity
|
| Warranty | Full two-year warranty including sensors and battery |
BW Clip4 sensor specifications
| Gases | Standard Measuring Range | Resolution |
| Hydrogen Sulfide (H2S) | 0 - 100 ppm | 1 / 0.1 ppm |
| Carbon Monoxide (CO) | 0 - 1,000 ppm | 1 ppm |
| Oxygen (O2) | 0 - 25% vol | 0.1% vol |
| Combustible Gases (LEL)* | 0 - 100% LEL | 1% LEL |
* Caution – LED IR sensor cannot see certain combustible gases including hydrogen and acetylene. The application should be reviewed to ensure the BW Clip4 can provide adequate protection. For more information, please contact Aegis Sales & Service
Download the Honeywell BW Clip4 Data Sheet
BW Clip4 Always On - 4 Sensor Gas Detector
BW Clip4 Special Order
When you see 'Special Order' products available for purchase on our website it means they will be sourced on-demand from our suppliers once you place your order. Products typically have this status when the product is not actively stocked within our warehouse but are available to order.
This may be due to the shelf life or the specialty nature of some of our products (ie: gas detection and specialty gases) or the need to custom manufacture a product to fit/suit the application.
Once we have received your order and payment confirmation we will place an order with the Supplier.
Gas Detectors / Specialty gases (ie: short shelf-life products) - may take up to 4 weeks (please note this can vary per supplier availability and manufacturing schedules) to be receipted into our store. You will receive an estimated date of shipping once we have received confirmation from our Supplier.
Custom Manufacturing - for items that require custom manufacturing you will receive an estimated date of shipping once we have received confirmation from our Supplier.
From time to time a supplier may not be able to supply in the time indicated, and items are placed on backorder. If it appears that your order will not be dispatched on time, you will be informed as soon as possible. You will be offered the opportunity to cancel your order at that time, otherwise, your order will be dispatched as soon as the items are available.
